SAP TECH: ALV Interactive Report

Steps:

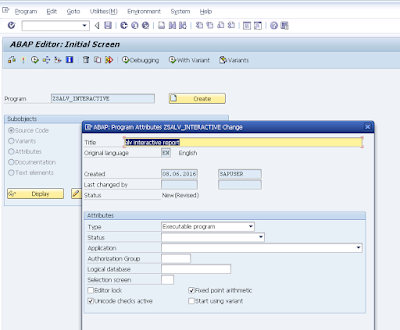

Go to transaction code SE38.

Enter the program name Z or Y<program name>.

Click on create button.
Enter the tittle and Select attribute type as Executable program.

Click on Save.

Source Code

TABLES : VBRK.

DATA: IT_VBRK TYPE TABLE OF VBRK.

DATA : IT_VBRP TYPE TABLE OF VBRP.

DATA : IT_LIST TYPE  SLIS_T_LISTHEADER,
       WA_LIST LIKE LINE OF IT_LIST.
SELECT-OPTIONS : S_VBELN FOR VBRK-VBELN.

START-OF-SELECTION.

PERFORM FETCH_DATA USING S_VBELN[] CHANGING IT_VBRK.

PERFORM DISPLAY TABLES IT_VBRK.
*&---------------------------------------------------------------------*
*&      Form  FETCH_DATA
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*      -->P_S_VBELN[]  text
*      <--P_IT_VBRK  text
*----------------------------------------------------------------------*
form FETCH_DATA  using    p_s_vbeln LIKE S_VBELN[]
                 changing p_it_vbrk LIKE IT_VBRK.

  SELECT * FROM VBRK INTO TABLE P_IT_VBRK WHERE VBELN IN p_s_vbeln .

endform.                    " FETCH_DATA
*&---------------------------------------------------------------------*
*&      Form  DISPLAY
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*      -->P_IT_VBRK  text
*----------------------------------------------------------------------*
form DISPLAY  tables   p_it_vbrk LIKE IT_VBRK.
                         "Insert correct name for <...>.

  call function 'REUSE_ALV_GRID_DISPLAY'
   EXPORTING
*     I_INTERFACE_CHECK                 = ' '
*     I_BYPASSING_BUFFER                = ' '
*     I_BUFFER_ACTIVE                   = ' '
     I_CALLBACK_PROGRAM                = SY-REPID
*     I_CALLBACK_PF_STATUS_SET          = ' '
    I_CALLBACK_USER_COMMAND           = 'INT1'
     I_CALLBACK_TOP_OF_PAGE            = 'TOP_PAGE'
*     I_CALLBACK_HTML_TOP_OF_PAGE       = ' '
*     I_CALLBACK_HTML_END_OF_LIST       = ' '
     I_STRUCTURE_NAME                  = 'VBRK'
*     I_BACKGROUND_ID                   = ' '
*     I_GRID_TITLE                      =
*     I_GRID_SETTINGS                   =
*     IS_LAYOUT                         =
*     IT_FIELDCAT                       =
*     IT_EXCLUDING                      =
*     IT_SPECIAL_GROUPS                 =
*     IT_SORT                           =
*     IT_FILTER                         =
*     IS_SEL_HIDE                       =
*     I_DEFAULT                         = 'X'
*     I_SAVE                            = ' '
*     IS_VARIANT                        =
*     IT_EVENTS                         =
*     IT_EVENT_EXIT                     =
*     IS_PRINT                          =
*     IS_REPREP_ID                      =
*     I_SCREEN_START_COLUMN             = 0
*     I_SCREEN_START_LINE               = 0
*     I_SCREEN_END_COLUMN               = 0
*     I_SCREEN_END_LINE                 = 0
*     I_HTML_HEIGHT_TOP                 = 0
*     I_HTML_HEIGHT_END                 = 0
*     IT_ALV_GRAPHICS                   =
*     IT_HYPERLINK                      =
*     IT_ADD_FIELDCAT                   =
*     IT_EXCEPT_QINFO                   =
*     IR_SALV_FULLSCREEN_ADAPTER        =
*   IMPORTING
*     E_EXIT_CAUSED_BY_CALLER           =
*     ES_EXIT_CAUSED_BY_USER            =
    tables
      t_outtab                          = p_it_vbrk
   EXCEPTIONS
     PROGRAM_ERROR                     = 1
     OTHERS                            = 2
            .
  if sy-subrc <> 0.
* Implement suitable error handling here
  endif.

endform. " DISPLAY
FORM TOP_PAGE .

WA_LIST-typ = 'H'.
WA_LIST-info = 'SALES ORDER REPORT'.
APPEND WA_LIST TO IT_LIST.
CLEAR WA_LIST.

WA_LIST-typ = 'S'.
CONCATENATE SY-DATUM+6(2) ':' SY-DATUM+4(2) ':' SY-DATUM(4)
INTO WA_LIST-info.
APPEND WA_LIST TO IT_LIST.
CLEAR WA_LIST.

To Upload Image/Logo

  call function 'REUSE_ALV_COMMENTARY_WRITE'
    exporting
      it_list_commentary       = IT_LIST
     I_LOGO                   = 'MYLOGO'
*     I_END_OF_LIST_GRID       =
*     I_ALV_FORM               =
            .
CLEAR IT_LIST.
ENDFORM.

FORM INT1 USING RCOM TYPE SY-UCOMM
                SEL TYPE SLIS_SELFIELD.

  DATA : NUM(10) TYPE N.
  NUM = SEL-VALUE.
SELECT * FROM VBRP INTO TABLE IT_VBRP WHERE VBELN = NUM .

  call function 'REUSE_ALV_GRID_DISPLAY'
   EXPORTING
*     I_INTERFACE_CHECK                 = ' '
*     I_BYPASSING_BUFFER                = ' '
*     I_BUFFER_ACTIVE                   = ' '
     I_CALLBACK_PROGRAM                = SY-REPID
*     I_CALLBACK_PF_STATUS_SET          = ' '
*     I_CALLBACK_USER_COMMAND           = ' '
*     I_CALLBACK_TOP_OF_PAGE            = ' '
*     I_CALLBACK_HTML_TOP_OF_PAGE       = ' '
*     I_CALLBACK_HTML_END_OF_LIST       = ' '
     I_STRUCTURE_NAME                  = 'VBRP'
*     I_BACKGROUND_ID                   = ' '
*     I_GRID_TITLE                      =
*     I_GRID_SETTINGS                   =
*     IS_LAYOUT                         =
*     IT_FIELDCAT                       =
*     IT_EXCLUDING                      =
*     IT_SPECIAL_GROUPS                 =
*     IT_SORT                           =
*     IT_FILTER                         =
*     IS_SEL_HIDE                       =
*     I_DEFAULT                         = 'X'
*     I_SAVE                            = ' '
*     IS_VARIANT                        =
*     IT_EVENTS                         =
*     IT_EVENT_EXIT                     =
*     IS_PRINT                          =
*     IS_REPREP_ID                      =
*     I_SCREEN_START_COLUMN             = 0
*     I_SCREEN_START_LINE               = 0
*     I_SCREEN_END_COLUMN               = 0
*     I_SCREEN_END_LINE                 = 0
*     I_HTML_HEIGHT_TOP                 = 0
*     I_HTML_HEIGHT_END                 = 0
*     IT_ALV_GRAPHICS                   =
*     IT_HYPERLINK                      =
*     IT_ADD_FIELDCAT                   =
*     IT_EXCEPT_QINFO                   =
*     IR_SALV_FULLSCREEN_ADAPTER        =
*   IMPORTING
*     E_EXIT_CAUSED_BY_CALLER           =
*     ES_EXIT_CAUSED_BY_USER            =
    tables
      t_outtab                          = IT_VBRP
   EXCEPTIONS
     PROGRAM_ERROR                     = 1
     OTHERS                            = 2
            .
  if sy-subrc <> 0.
* Implement suitable error handling here
  endif.

ENDFORM.
