OO-ALV Manual FieldCatalog

Steps

• Go to Transaction Code SE38.

• Enter the program name start's with Y or Z < program name > and click on Create Button.

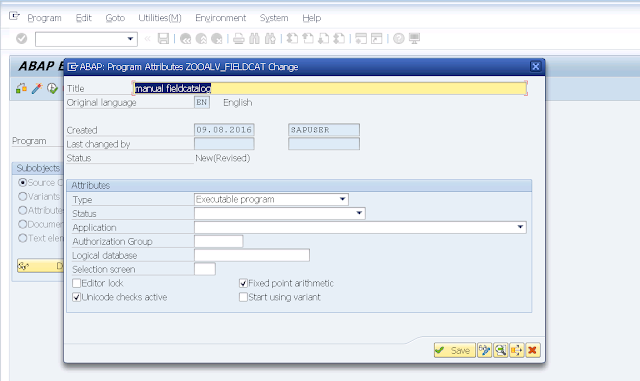

• Enter the Title.
• Select the Attribute Type as Executable Program.
• Click on SAVE.

• Enter the code

TYPES: BEGIN OF TY_BILL,
       VBELN TYPE VBRK-VBELN,
       VKORG TYPE VBRK-VKORG,
       KUNNR TYPE VBRK-KUNRG,
       POSNR TYPE VBRP-POSNR,
       MATNR TYPE VBRP-MATNR,
       ARKTX TYPE VBRP-ARKTX,
       END OF TY_BILL.

DATA : WA_BILL TYPE TY_BILL,
       IT_BILL TYPE TABLE OF TY_BILL.

DATA : O_CUST TYPE REF TO CL_GUI_CUSTOM_CONTAINER,
       O_ALV TYPE REF TO CL_GUI_ALV_GRID.

DATA : IT_FIELD TYPE LVC_T_FCAT,
       WA_FIELD TYPE LVC_S_FCAT.

SELECT-OPTIONS : S_VBELN FOR WA_BILL-VBELN.

PERFORM FETCH_DATA USING S_VBELN[] CHANGING IT_BILL.

• Double click on Subroutine FETCH_DATA .

• Pop-up will appear.
• Click on Yes.

• Select the include and click on continue.

• Enter the Logic.

 SELECT A~VBELN
         VKORG
         KUNRG
         POSNR
         MATNR
         ARKTX INTO TABLE p_it_bill FROM VBRK AS A INNER JOIN VBRP AS B
    ON B~VBELN = A~VBELN WHERE A~VBELN IN p_s_vbeln.

• Enter the subroutine  name to create Field catalog.

PERFORM FIELDCAT.

• Double click on Subroutine name.
• Pop-up will appear.
• Click on Yes.

• Pop-up will appear.
• Select the Include name and click on continue.

• Enter the code.

WA_FIELD-COL_POS =  1.
  WA_FIELD-FIELDNAME = 'VBELN'.
  WA_FIELD-OUTPUTLEN = 10.
  WA_FIELD-SCRTEXT_M = 'BILL DOC '.
  WA_FIELD-KEY   = 'X'.
  WA_FIELD-HOTSPOT = 'X'.
  APPEND WA_FIELD TO IT_FIELD.
  CLEAR WA_FIELD.

  WA_FIELD-COL_POS = 2.
  WA_FIELD-FIELDNAME =  'VKORG'.
  WA_FIELD-OUTPUTLEN = '10'.
  WA_FIELD-SCRTEXT_M = 'SALES ORGANISATION'.
  APPEND WA_FIELD TO IT_FIELD.
  CLEAR WA_FIELD.

   WA_FIELD-COL_POS = 3.
  WA_FIELD-FIELDNAME = 'KUNRG'.
  WA_FIELD-OUTPUTLEN = 18.
  WA_FIELD-SCRTEXT_M = 'CUSTOMER'.
  APPEND WA_FIELD TO IT_FIELD.
  CLEAR WA_FIELD.


   WA_FIELD-COL_POS =  4.
  WA_FIELD-FIELDNAME = 'POSNR'.
  WA_FIELD-OUTPUTLEN = 6.
  WA_FIELD-SCRTEXT_M = 'ITEM NUMBER'.
  APPEND WA_FIELD TO IT_FIELD.
  CLEAR WA_FIELD.

   WA_FIELD-COL_POS =  5.
  WA_FIELD-FIELDNAME =  'MATNR'.
  WA_FIELD-OUTPUTLEN = 18.
   WA_FIELD-SCRTEXT_M = 'MATERIAL NUMBER'.
  APPEND WA_FIELD TO IT_FIELD.
  CLEAR WA_FIELD.

   WA_FIELD-COL_POS = 6.
  WA_FIELD-FIELDNAME =  'ARKTX'.
  WA_FIELD-OUTPUTLEN =  40.
  WA_FIELD-SCRTEXT_M = 'MATERIAL DESCRIPTION'.
  APPEND WA_FIELD TO IT_FIELD.
  CLEAR WA_FIELD.

• Call Screen.

CALL SCREEN 9000.

• Double click on Screen Number.

• Pop-up will appear.
• Click on Yes.

• Enter the short description.

• Click on Layout Button.

• Click on Custom Container.

• Drag the Custom Container and enter the custom container name.

• Click on Back Button.

• Enable the PBO and PAI modules.

• Double click on PBO module.
• Pop-up will appear.

• Click on Yes.

• Select the Include and click on Continue.

• Pop-up will appear.
• Click on Yes.

• Looks like,

• Enable PF-status and Enter the name.

• Double click on the name.
• Pop-up will appear.
• Click on Yes.

• Pop-up will appear.
• Enter the short text and click continue.

• Screen looks like,

• Expand Function Keys and Enter the function keys.

• Save -> Check -> Activate.

• Click on Back.
• Enter the code.

IF O_CUST IS NOT BOUND.

  create object o_cust
    exporting
*      parent                      =
      container_name              = 'CUST'
*      style                       =
*      lifetime                    = lifetime_default
*      repid                       =
*      dynnr                       =
*      no_autodef_progid_dynnr     =
    exceptions
      cntl_error                  = 1
      cntl_system_error           = 2
      create_error                = 3
      lifetime_error              = 4
      lifetime_dynpro_dynpro_link = 5
      others                      = 6
      .
  if sy-subrc <> 0.
   MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
              WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
  endif.


create object o_alv
  exporting
*    i_shellstyle      = 0
*    i_lifetime        =
    i_parent          = O_CUST
*    i_appl_events     = space
*    i_parentdbg       =
*    i_applogparent    =
*    i_graphicsparent  =
*    i_name            =
*    i_fcat_complete   = space
  exceptions
    error_cntl_create = 1
    error_cntl_init   = 2
    error_cntl_link   = 3
    error_dp_create   = 4
    others            = 5
    .
if sy-subrc <> 0.
 MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
            WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
endif.

call method o_alv->set_table_for_first_display
*  exporting
*    i_buffer_active               =
*    i_bypassing_buffer            =
*    i_consistency_check           =
*    i_structure_name              =
*    is_variant                    =
*    i_save                        =
*    i_default                     = 'X'
*    is_layout                     =
*    is_print                      =
*    it_special_groups             =
*    it_toolbar_excluding          =
*    it_hyperlink                  =
*    it_alv_graphics               =
*    it_except_qinfo               =
*    ir_salv_adapter               =
  changing
    it_outtab                     = IT_BILL
    it_fieldcatalog               = IT_FIELD
*    it_sort                       =
*    it_filter                     =
  exceptions
    invalid_parameter_combination = 1
    program_error                 = 2
    too_many_lines                = 3
    others                        = 4
        .
if sy-subrc <> 0.
 MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
            WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
endif.


ENDIF.

• Click on Save and Click on BACK button.

• Double click on PAI module name.

• Pop-up will appear.
• Click on Yes.

• Pop-up will appear.
• Mention the Include name and click on Continue.

• Enter the code.

 CASE SY-UCOMM.
    WHEN 'BACK'.
      LEAVE TO SCREEN 0.
    WHEN 'EXIT'.
    LEAVE PROGRAM.
  ENDCASE.

• Click on Save and click on Back Button.

• Click on Activate.

• Click on Back button.

• Save -> Check -> Activate.

• Execute ( F8 ).

Input

• Enter the input value.

• Execute.

Output

Source Code

TYPES: BEGIN OF TY_BILL,
       VBELN TYPE VBRK-VBELN,
       VKORG TYPE VBRK-VKORG,
       KUNNR TYPE VBRK-KUNRG,
       POSNR TYPE VBRP-POSNR,
       MATNR TYPE VBRP-MATNR,
       ARKTX TYPE VBRP-ARKTX,
       END OF TY_BILL.

DATA : WA_BILL TYPE TY_BILL,
       IT_BILL TYPE TABLE OF TY_BILL.

DATA : O_CUST TYPE REF TO CL_GUI_CUSTOM_CONTAINER,
       O_ALV TYPE REF TO CL_GUI_ALV_GRID.

DATA : IT_FIELD TYPE LVC_T_FCAT,
       WA_FIELD TYPE LVC_S_FCAT.

SELECT-OPTIONS : S_VBELN FOR WA_BILL-VBELN.

START-OF-SELECTION.

PERFORM FETCH_DATA USING S_VBELN[] CHANGING IT_BILL.

PERFORM FIELDCAT.

CALL SCREEN 9000.
*&---------------------------------------------------------------------*
*&      Module  STATUS_9000  OUTPUT
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
module STATUS_9000 output.
  SET PF-STATUS 'ZOOBAR'.
*  SET TITLEBAR 'xxx'.



IF O_CUST IS NOT BOUND.

  create object o_cust
    exporting
*      parent                      =
      container_name              = 'CUST'
*      style                       =
*      lifetime                    = lifetime_default
*      repid                       =
*      dynnr                       =
*      no_autodef_progid_dynnr     =
    exceptions
      cntl_error                  = 1
      cntl_system_error           = 2
      create_error                = 3
      lifetime_error              = 4
      lifetime_dynpro_dynpro_link = 5
      others                      = 6
      .
  if sy-subrc <> 0.
   MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
              WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
  endif.


create object o_alv
  exporting
*    i_shellstyle      = 0
*    i_lifetime        =
    i_parent          = O_CUST
*    i_appl_events     = space
*    i_parentdbg       =
*    i_applogparent    =
*    i_graphicsparent  =
*    i_name            =
*    i_fcat_complete   = space
  exceptions
    error_cntl_create = 1
    error_cntl_init   = 2
    error_cntl_link   = 3
    error_dp_create   = 4
    others            = 5
    .
if sy-subrc <> 0.
 MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
            WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
endif.

call method o_alv->set_table_for_first_display
*  exporting
*    i_buffer_active               =
*    i_bypassing_buffer            =
*    i_consistency_check           =
*    i_structure_name              =
*    is_variant                    =
*    i_save                        =
*    i_default                     = 'X'
*    is_layout                     =
*    is_print                      =
*    it_special_groups             =
*    it_toolbar_excluding          =
*    it_hyperlink                  =
*    it_alv_graphics               =
*    it_except_qinfo               =
*    ir_salv_adapter               =
  changing
    it_outtab                     = IT_BILL
    it_fieldcatalog               = IT_FIELD
*    it_sort                       =
*    it_filter                     =
  exceptions
    invalid_parameter_combination = 1
    program_error                 = 2
    too_many_lines                = 3
    others                        = 4
        .
if sy-subrc <> 0.
 MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO
            WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.
endif.


ENDIF.

endmodule.                 " STATUS_9000  OUTPUT
*&---------------------------------------------------------------------*
*&      Module  USER_COMMAND_9000  INPUT
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
module USER_COMMAND_9000 input.


 CASE SY-UCOMM.
    WHEN 'BACK'.
      LEAVE TO SCREEN 0.
    WHEN 'EXIT'.
    LEAVE PROGRAM.
  ENDCASE.

endmodule.                 " USER_COMMAND_9000  INPUT
*&---------------------------------------------------------------------*
*&      Form  FETCH_DATA
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*      -->P_S_VBELN[]  text
*      <--P_IT_BILL  text
*----------------------------------------------------------------------*
form FETCH_DATA  using    p_s_vbeln like s_vbeln[]
                 changing p_it_bill like  it_bill .

   SELECT A~VBELN
         VKORG
         KUNRG
         POSNR
         MATNR
         ARKTX INTO TABLE p_it_bill FROM VBRK AS A INNER JOIN VBRP AS B
    ON B~VBELN = A~VBELN WHERE A~VBELN IN p_s_vbeln.


endform.                    " FETCH_DATA
*&---------------------------------------------------------------------*
*&      Form  FIELDCAT
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
form FIELDCAT .

  WA_FIELD-COL_POS =  1.
  WA_FIELD-FIELDNAME = 'VBELN'.
  WA_FIELD-OUTPUTLEN = 10.
  WA_FIELD-SCRTEXT_M = 'BILL DOC '.
  WA_FIELD-KEY   = 'X'.
  WA_FIELD-HOTSPOT = 'X'.
  APPEND WA_FIELD TO IT_FIELD.
  CLEAR WA_FIELD.

  WA_FIELD-COL_POS = 2.
  WA_FIELD-FIELDNAME =  'VKORG'.
  WA_FIELD-OUTPUTLEN = '10'.
  WA_FIELD-SCRTEXT_M = 'SALES ORGANISATION'.
  APPEND WA_FIELD TO IT_FIELD.
  CLEAR WA_FIELD.

   WA_FIELD-COL_POS = 3.
  WA_FIELD-FIELDNAME = 'KUNRG'.
  WA_FIELD-OUTPUTLEN = 18.
  WA_FIELD-SCRTEXT_M = 'CUSTOMER'.
  APPEND WA_FIELD TO IT_FIELD.
  CLEAR WA_FIELD.


   WA_FIELD-COL_POS =  4.
  WA_FIELD-FIELDNAME = 'POSNR'.
  WA_FIELD-OUTPUTLEN = 6.
  WA_FIELD-SCRTEXT_M = 'ITEM NUMBER'.
  APPEND WA_FIELD TO IT_FIELD.
  CLEAR WA_FIELD.

   WA_FIELD-COL_POS =  5.
  WA_FIELD-FIELDNAME =  'MATNR'.
  WA_FIELD-OUTPUTLEN = 18.
   WA_FIELD-SCRTEXT_M = 'MATERIAL NUMBER'.
  APPEND WA_FIELD TO IT_FIELD.
  CLEAR WA_FIELD.

   WA_FIELD-COL_POS = 6.
  WA_FIELD-FIELDNAME =  'ARKTX'.
  WA_FIELD-OUTPUTLEN =  40.
  WA_FIELD-SCRTEXT_M = 'MATERIAL DESCRIPTION'.
  APPEND WA_FIELD TO IT_FIELD.
  CLEAR WA_FIELD.


endform.                    " FIELDCAT
