Global Class : Types

• Types are used to define structure , Table type etc.

Ex :-

Steps :-

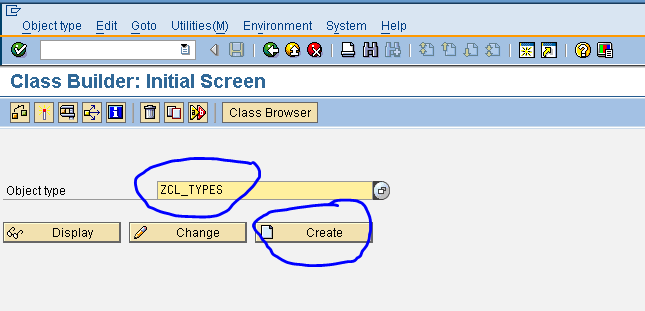

• Go to Transaction Code SE24.

• Enter the class name start's with ZCL_< Class name > and click on Create.

• Pop-up will appear.
• Enter the description.
• Click on SAVE.

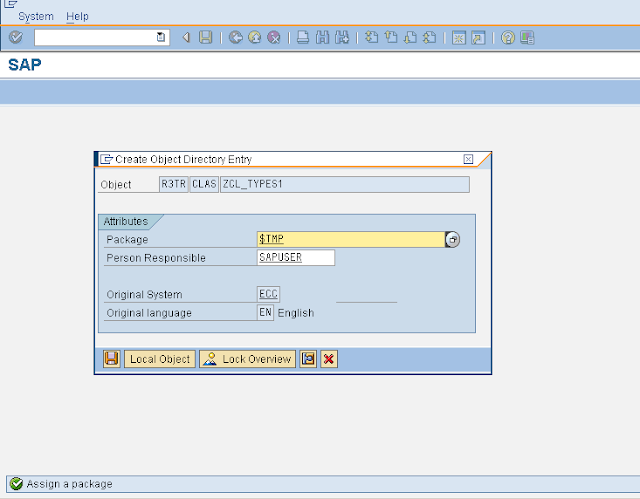

• Save it in either local Package or Package.

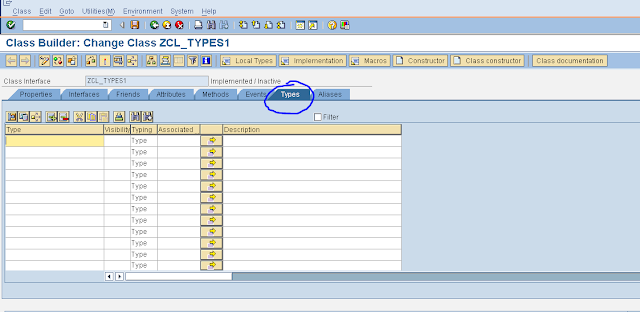

• Click on Types Tab.

• Enter the Type , select the Visibility.

• Click on " Direct Type Entry ".

• Pop-up will appear.
• Click on Yes.

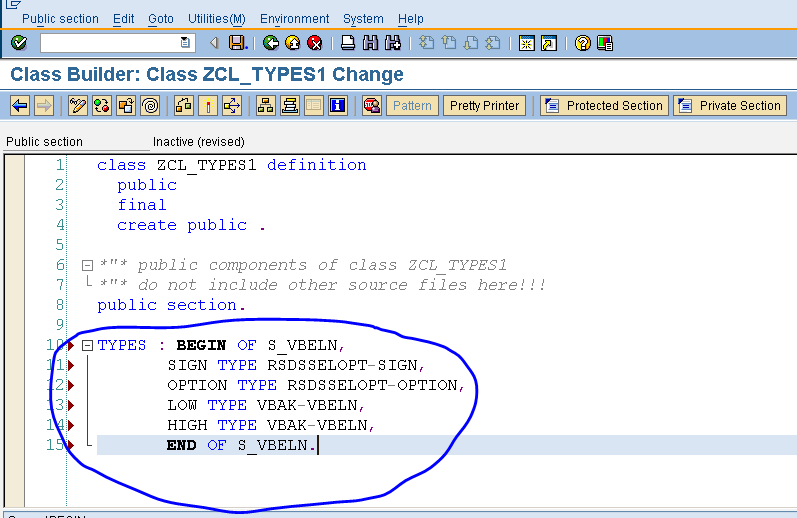

• Create a structure for SELECT-OPTIONS.

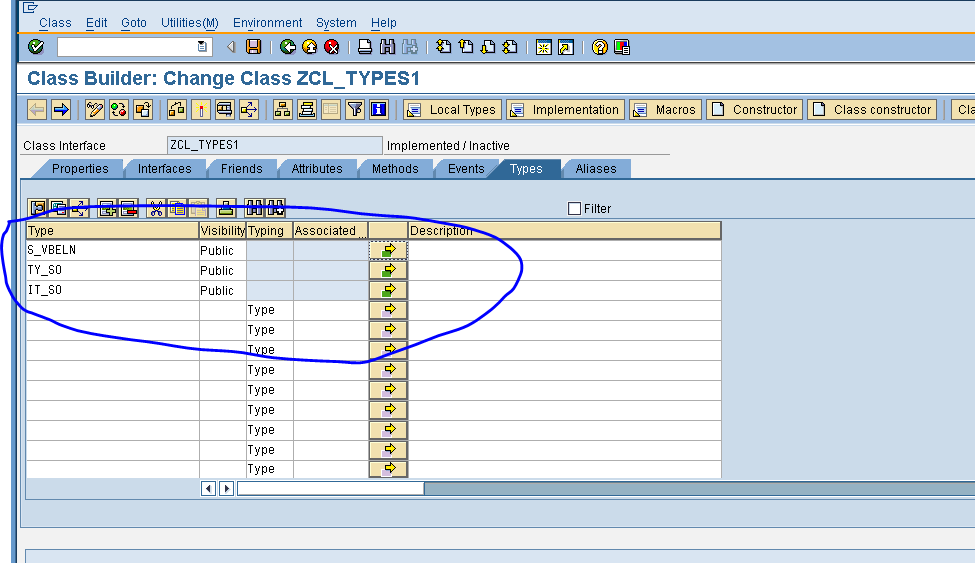

• Create a structure , internal table type for selected fields.

• Click on Save.

• Click on Back.

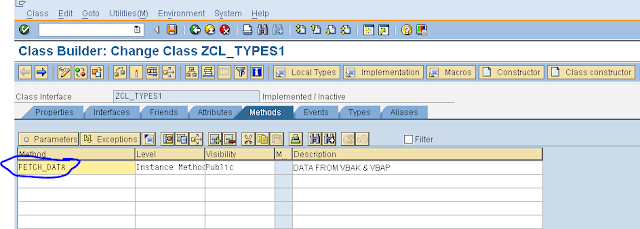

• Click on Method Tab.

• Enter the method name , Level , Visibility.

• To pass parameters , place the cursor on method name and click on Parameters.

• Enter the parameter name  , Type  and Associated Type.

• Save.
• Click on Back button.

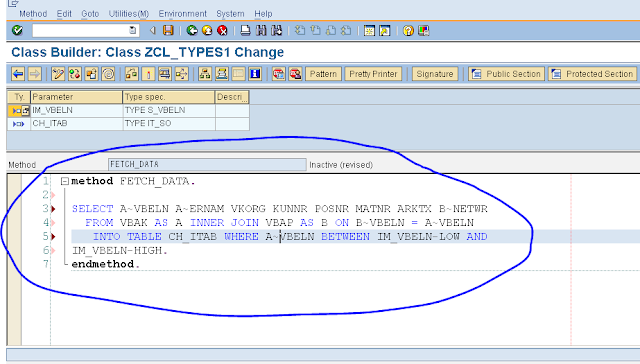

• Double click on Method name.

• Enter the Logic.

• Click on Save and click and back button.

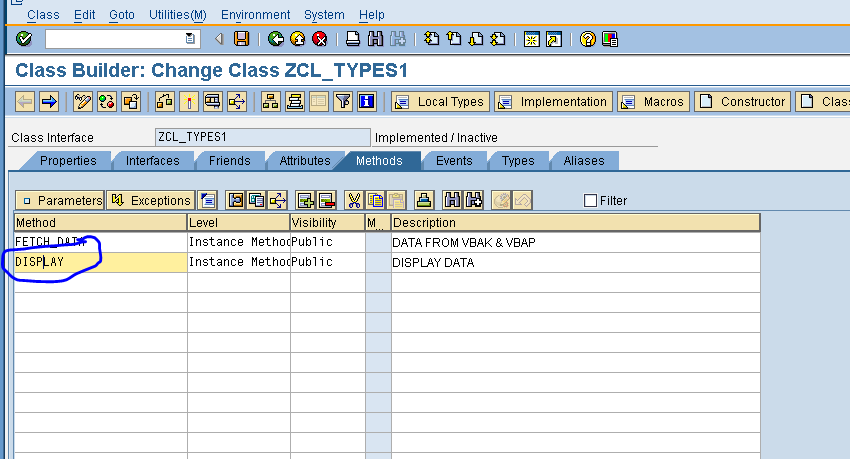

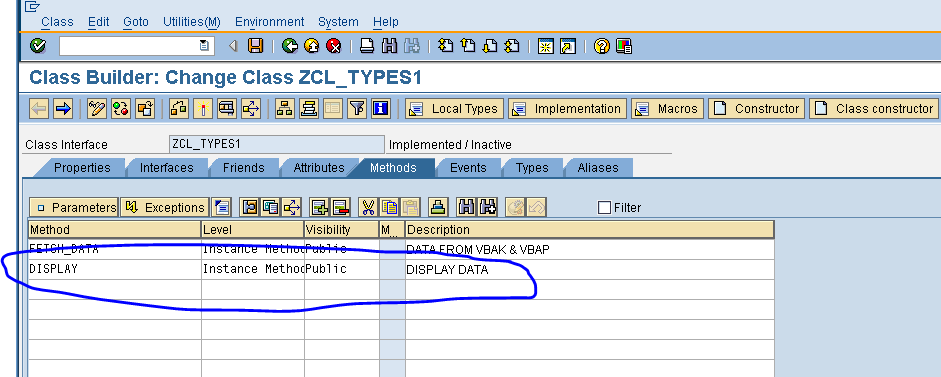

• Create a method for display data.

• To pass parameters, place the cursor on method name and click on Parameters.

• Enter parameter , Type and Associated Type.

• Click on Save and click on Back Button.
• To implement the method double click on method name.

• Enter the logic.

• Click on Save and click on Back.

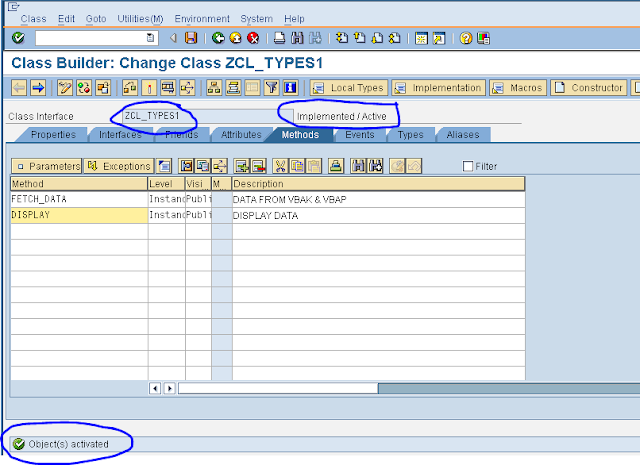

• Save -> Check -> Activate.

• Copy the Class name.

Main Program

• Go to Transaction Code SE38.

• Enter the program name which start's with Y or Z < program name > and click on Create.

• Enter the Title.
• Select the Attribute Type as Executable Program.
• Click on Save.

• Source Code.

types:BEGIN OF TY_SO,

        VBELN TYPE VBAK-VBELN,

        ERNAM TYPE VBAK-ERNAM,

        VKORG TYPE VBAK-VKORG,

        KUNNR TYPE VBAK-KUNNR,

        POSNR TYPE VBAP-POSNR,

        MATNR TYPE VBAP-MATNR,

        ARKTX TYPE VBAP-ARKTX,

        NETWR TYPE VBAP-NETWR,

        END OF TY_SO .

 DATA :IT_SO TYPE TABLE OF TY_SO ,

       WA_SO TYPE TY_SO.

 DATA : OBJ TYPE REF TO ZCL_TYPES1.

 SELECT-OPTIONS : S_VBELN FOR WA_SO-VBELN.

 START-OF-SELECTION.

 CREATE OBJECT OBJ.

 CALL METHOD OBJ->FETCH_DATA

   EXPORTING

     IM_VBELN = S_VBELN

   CHANGING

     CH_ITAB  = IT_SO

     .

 CALL METHOD OBJ->DISPLAY

   EXPORTING

     IM_ITAB = IT_SO

     .

• Save -> Check -> Activate.
• Execute.

Input

• Enter the input.

Output

• Execute ( F8 ).
