Basic OO-ALV Report ( SE38 )

Steps:

1.Get the data into internal table.

• Go to Transaction code SE38.

• Enter the program name which start's with Y or Z< Program name > and click on create Button.

• Enter the Title.
• Select the Attribute Type as Executable Program.
• Click on SAVE button.

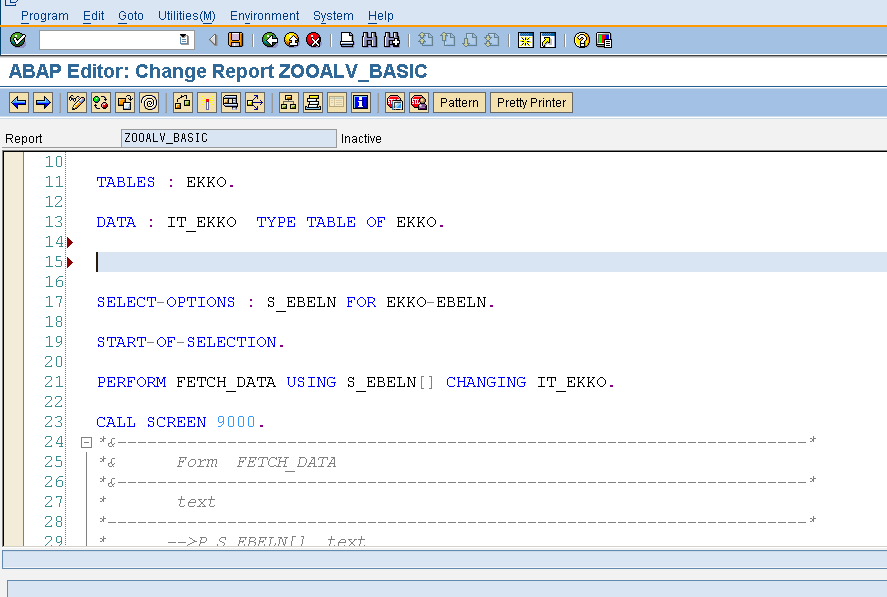

• Enter the logic.

TABLES : EKKO.

DATA : IT_EKKO  TYPE TABLE OF EKKO.

SELECT-OPTIONS : S_EBELN FOR EKKO-EBELN.

START-OF-SELECTION.

PERFORM FETCH_DATA USING S_EBELN[] CHANGING IT_EKKO.

• Double click on Subroutine name.

• Pop-up will appear.
• Click on Yes.

•   Select the include and click on Continue.

• Enter the Logic,

 SELECT * FROM EKKO INTO TABLE P_IT_EKKO WHERE EBELN IN P_S_EBELN.

2.Create a custom control Screen.

• Call the custom Container screen.

• To Create screen .
• Double click on Screen Number.

• Pop-up will appear.
• Click on Yes.

• Pop-up will appear.
• Click on Yes.

• Enter the short description.

• Click on Layout.

• Click on Custom Container.

• Drag the Custom Container.

• Enter the Name for Custom Container.

• Save -> Check -> Activate.
• Click on Back.

• Click on Back.

3.Create object for CL_GUI_CUSTOM_CONTAINER(pass custom control name) .

• Declare the Objects.

• Double click on Screen number.

• Enable the PBO module using CTRL + >.

• Double click on PBO module name.
• Pop-up will appear.

• Pop-up will appear.
• Select the include and click on continue.

• Pop-up will appear.
• Click on Yes.

• Click on Pattern.

• Pop-up will appear.
• Click on ABAP object Pattern radio button.
• Click on continue.

• Pop-up will appear.
• Click on Create Object radio Button.
• Enter the Instance name.
• Enter the Class name and click on continue.

• Enter the custom container name.

4.Create object for CL_GUI_ALV_GRID ( pass object of custom container).

• Create object for class CL_GUI_ALV_GRID.
• Click on Pattern.

• Pop-up will appear.
• Click on ABAP object Pattern radio button.
• Click on continue.

• Pop-up will appear.
• Click on Create Object radio Button.
• Enter the Instance name.
• Enter the Class name and click on continue.

• Enter the parent name as Custom container Object name.

Call the method SET_TABLE_FOR_FIRST_DISPLAY).

• Pop-up will appear.
• Click on ABAP object Pattern radio button.
• Click on continue.

• Pop-up will appear.
• Click on Call method radio button.
• Enter the instance name.
• Enter the Class name and method name.
• Click on continue.

• Pass the Global Table structure name.

• Pass the Internal table and Enable the Exceptions.

• Save -> Check -> Activate.

• Click on Back button.

• Save -> Check -> activate.

• Click on Back button.

• Save -> Check -> Activate.

• Click on Execute.

Input

• Enter the input.

• Execute.

Output

Source Code

REPORT  ZOOALV_BASIC.

TABLES : EKKO.

DATA : IT_EKKO  TYPE TABLE OF EKKO.

DATA : O_CUST TYPE REF TO CL_GUI_CUSTOM_CONTAINER,

       O_ALV TYPE REF TO CL_GUI_ALV_GRID.

SELECT-OPTIONS : S_EBELN FOR EKKO-EBELN.

START-OF-SELECTION.

PERFORM FETCH_DATA USING S_EBELN[] CHANGING IT_EKKO.

CALL SCREEN 9000.

*&---------------------------------------------------------------------*

*&      Form  FETCH_DATA

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

*      -->P_S_EBELN[]  text

*      <--P_IT_EKKO  text

*----------------------------------------------------------------------*

FORM FETCH_DATA  USING    P_S_EBELN LIKE  S_EBELN[]

                 CHANGING P_IT_EKKO LIKE  IT_EKKO.

  SELECT * FROM EKKO INTO TABLE P_IT_EKKO WHERE EBELN IN P_S_EBELN.

ENDFORM.                    " FETCH_DATA

*&---------------------------------------------------------------------*

*&      Module  STATUS_9000  OUTPUT

*&---------------------------------------------------------------------*

*       text

*----------------------------------------------------------------------*

MODULE STATUS_9000 OUTPUT.

*  SET PF-STATUS 'xxxxxxxx'.

*  SET TITLEBAR 'xxx'.

CREATE OBJECT O_CUST

  EXPORTING

*    PARENT                      =

    CONTAINER_NAME              = 'CUST'

*    STYLE                       =

*    LIFETIME                    = lifetime_default

*    REPID                       =

*    DYNNR                       =

*    NO_AUTODEF_PROGID_DYNNR     =

  EXCEPTIONS

    CNTL_ERROR                  = 1

    CNTL_SYSTEM_ERROR           = 2

    CREATE_ERROR                = 3

    LIFETIME_ERROR              = 4

    LIFETIME_DYNPRO_DYNPRO_LINK = 5

    others                      = 6

    .

IF SY-SUBRC <> 0.

 MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO

            WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.

ENDIF.

CREATE OBJECT O_ALV

  EXPORTING

*    I_SHELLSTYLE      = 0

*    I_LIFETIME        =

    I_PARENT          = O_CUST

*    I_APPL_EVENTS     = space

*    I_PARENTDBG       =

*    I_APPLOGPARENT    =

*    I_GRAPHICSPARENT  =

*    I_NAME            =

*    I_FCAT_COMPLETE   = SPACE

  EXCEPTIONS

    ERROR_CNTL_CREATE = 1

    ERROR_CNTL_INIT   = 2

    ERROR_CNTL_LINK   = 3

    ERROR_DP_CREATE   = 4

    others            = 5

    .

IF SY-SUBRC <> 0.

 MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO

            WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.

ENDIF.

CALL METHOD O_ALV->SET_TABLE_FOR_FIRST_DISPLAY

  EXPORTING

*    I_BUFFER_ACTIVE               =

*    I_BYPASSING_BUFFER            =

*    I_CONSISTENCY_CHECK           =

    I_STRUCTURE_NAME              = 'EKKO'

*    IS_VARIANT                    =

*    I_SAVE                        =

*    I_DEFAULT                     = 'X'

*    IS_LAYOUT                     =

*    IS_PRINT                      =

*    IT_SPECIAL_GROUPS             =

*    IT_TOOLBAR_EXCLUDING          =

*    IT_HYPERLINK                  =

*    IT_ALV_GRAPHICS               =

*    IT_EXCEPT_QINFO               =

*    IR_SALV_ADAPTER               =

  CHANGING

    IT_OUTTAB                     = IT_EKKO

*    IT_FIELDCATALOG               =

*    IT_SORT                       =

*    IT_FILTER                     =

  EXCEPTIONS

    INVALID_PARAMETER_COMBINATION = 1

    PROGRAM_ERROR                 = 2

    TOO_MANY_LINES                = 3

    others                        = 4

        .

IF SY-SUBRC <> 0.

 MESSAGE ID SY-MSGID TYPE SY-MSGTY NUMBER SY-MSGNO

            WITH SY-MSGV1 SY-MSGV2 SY-MSGV3 SY-MSGV4.

ENDIF.

ENDMODULE.                 " STATUS_9000  OUTPUT
