Example for Global Field Exit

Requirements

• Create a field Exit for Data Element 'MATNR' which will restrict users from entering a Material Number 'DUST201' in Entire SAP ECC.

Steps :

• Go to Transaction Code MM01 ( Create Material ).

• Click on Material Input box and Click on F1 ( Documentation Help ).

• Pop-up will appear.
• Click on Technical Information.

• Pop-up will appear.
• Copy the Data Element name.

• Go to Transaction Code CMOD.

• Enter the Transaction Code PRFB.

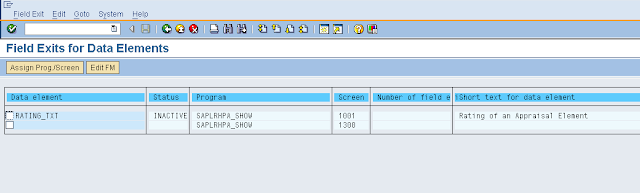

• Initial Screen looks like.

• To Create Global Field Exit.
• Click on Field Exit -> Create.

• Pop-up will appear.
• Enter the Data Element name and click on Continue .

• Automatically one function module will appear , Click on Create.

• Pop-up will appear.
• Enter the function group name.
• Enter the short text and click on SAVE.

• Click on Source Code.

• Enter the logic.

• Save -> Check -> Activated.
• Twice Click on back button.
• Click on Cancel.

• To activate the Field Exit.

• Select the Data Element and Click on Field Exit -> Activate.

• Pop-up will appear.
• Click on Continue.

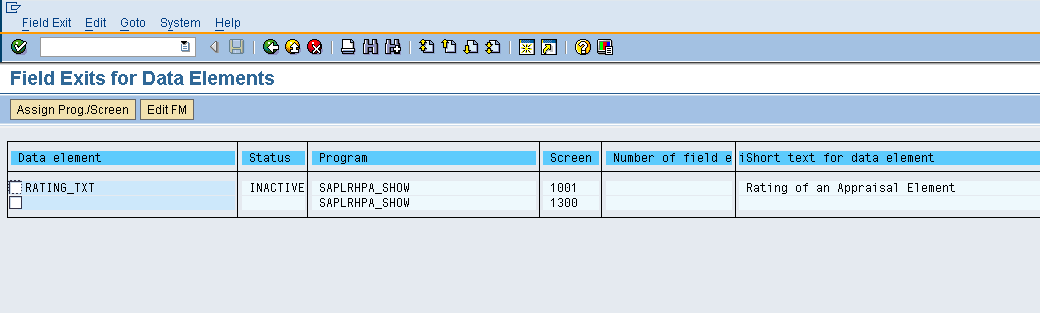

• Check the status.

Test - 1

• Go to Transaction Code MM01.

• Enter the Material Number : DUST201 and required entries and press Enter.

Output

• Check the status bar.

Test -2

• Go to transaction MMAM.

• Enter the Material Number : DUST201 and required entries and press Enter.

Output

• Check the status bar.
