Data migration from SAP-ECC to SAP-HANA using SLT

Step 1 :Create RFC using SM59 transaction code ( SAP to SLT connection ).

• Go to Transaction code SM59 in SAP-ECC system.

• Select ABAP connection and click on Create.

• Enter the RFC Destination name and Description.

• In Technical Settings , enter the Target Host and Instance No.

• i.e

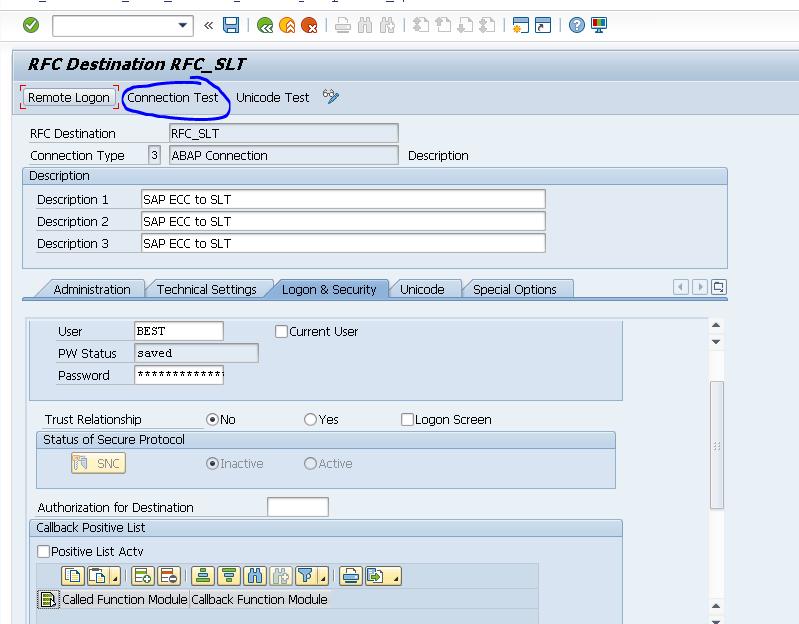

• Click on Logon & Security tab and enter the user name and password.

• Click on SAVE.
• Click on Connection Test.

• Connection test looks like,

Step 2 : Create Configuration using Transaction code LTRC .

• Go to transaction code LTRC.

• Click on Create configuration.

• Pop-up will appear.
• Enter the Configuration Name and Description.

Note : In , SAP-HANA same name of Configuration Name Schema will creates .

• Click on Next button.

Specify Source system

• Select RFC Connection radio button.
• Enter the RFC Destination Name.
• Check Allow Multiple Usage ( Means we can use this RFC for multiple  data transfer )
• Check Read from Single client and click on Next.

Specify Destination system.

• Click on DB connection radio button.
• Select Database system as HANA.
• Enter the Administration User name , Password , Host Name Instance Number of HANA system.
• Click on Next.

• To get HANA Host name and Instance Number , go to additional properties .

• Number of Data Transfer Jobs : Each job can transfer 4 tables. for example in our requirement we have 16 tables that means we require 4 jobs.
• Number of Initial Load Jobs : Data which transfers first time.
• Number of Calculation Jobs: which calculates system statistics.
• Click on Next.

• Review and click on Create.

• Successful configuration looks like,





Step 3: Check the Schema name in SAP- HANA system.

• Click on window -> Perspective -> Reset perspective.

• Click on Data provisioning.

• Click on Finish.

• We can see Schema name as same as Configuration name and DD02L , DD02T, DD08L Tables.
